飞针测试机 Flying Test System

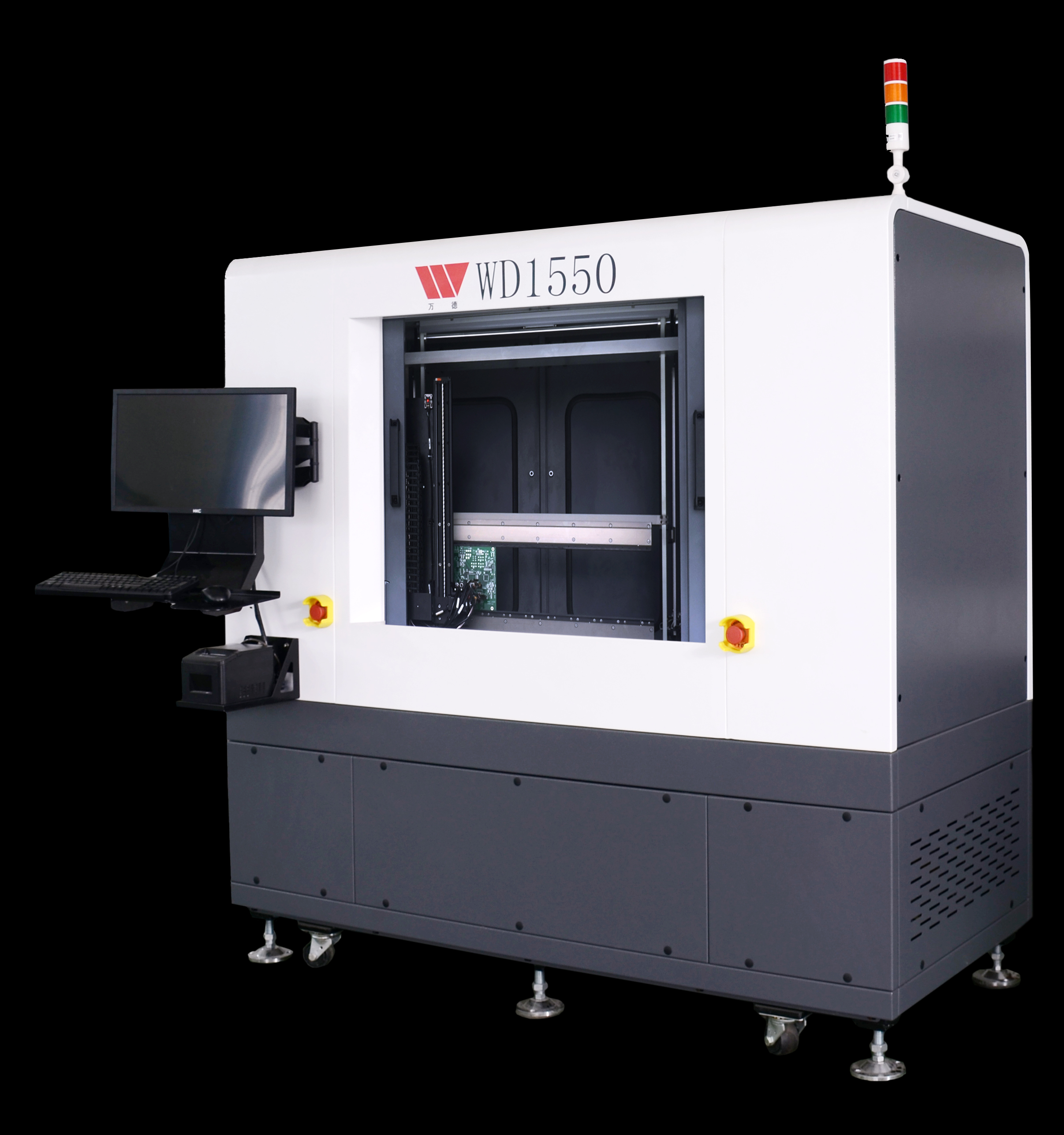

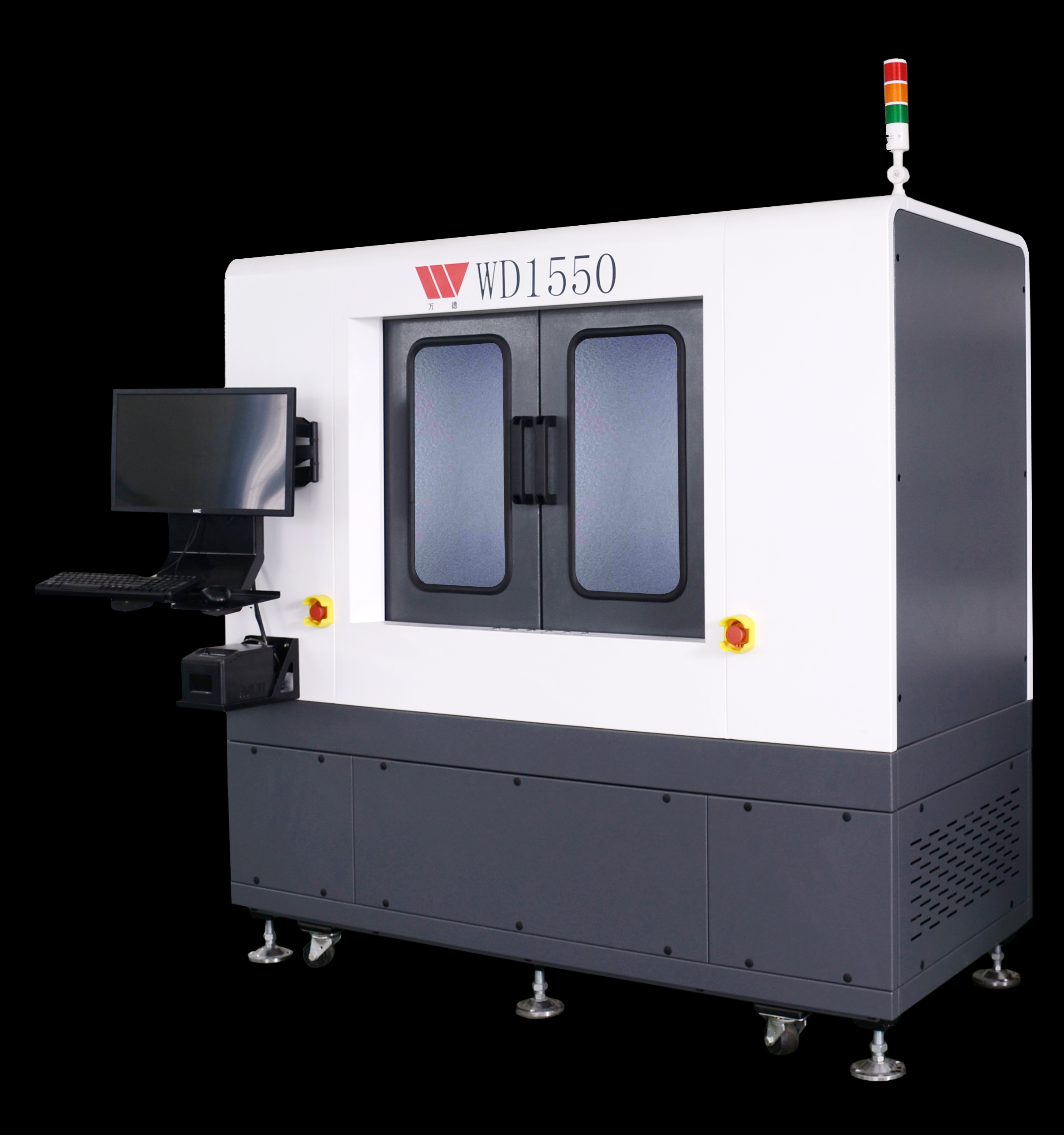

WD1550飞针测试机
WD1550 Flying Test System
◎ 产品特点 Performance features
采用独立气缸气夹机构，能更方便可靠的测试薄板及软板。
整体骨架采用厚达20mm的钢板构成，稳定且耐用。
模组化设计结构，双轴驱动超强平稳，保证精度大大提高。
ccd摄像头快速定位及检修系统。
新型探针压力大小可调，可达到无针痕效果。
Adopt independent cylinder air clamp mechanism，Can more convenient and reliable test sheet and soft board.
The overall skeleton is made of steel plates up to 20mm thick, stable and durable.
Modular design structure, double-shaft drive super-stable, ensure that the accuracy is greatly improved.
Fast positioning and maintenance system of CCD camera.
The pressure of the new probe can be adjusted to achieve the effect of no needle mark.

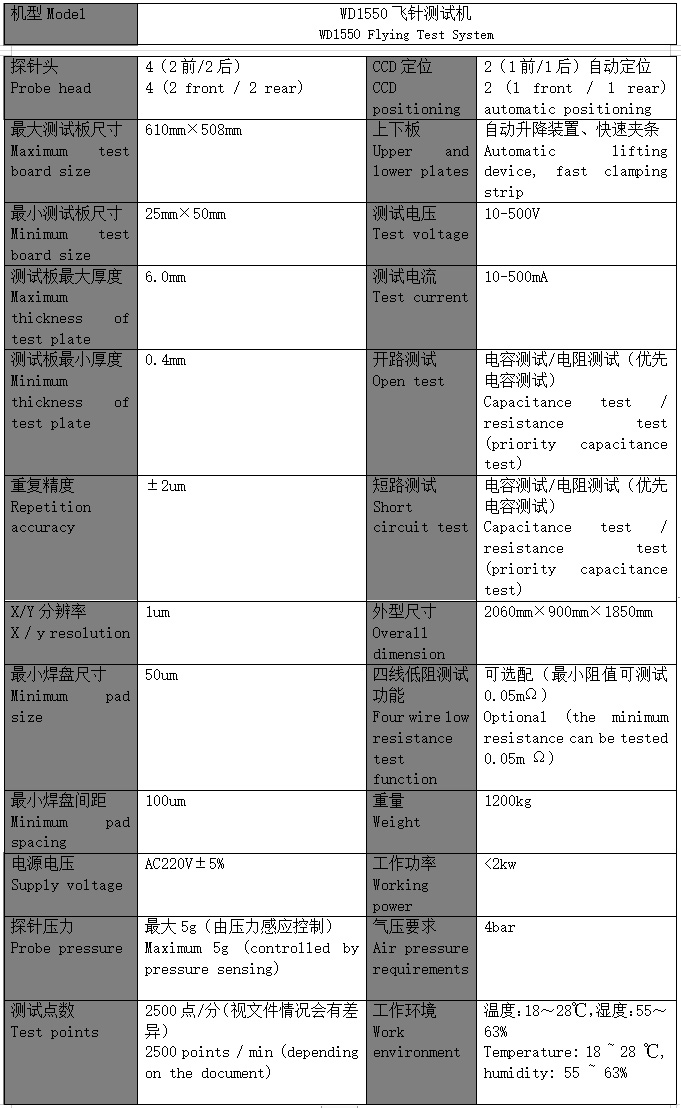

◎ 技术参数 Specification
